UL NO: E230926 Insulation Class: 180 ° C ° -220C °
Soflex®NHN It is a three-layer soft composite material, with the outer two layers made of DuPont NOMEX® from the United States Paper, with an inner layer of polyimide film.
Basic characteristics
• Excellent temperature resistance and mechanical properties
• Excellent tensile and tear resistance, as well as excellent dielectric strength of polyimide film
Soflex®NHN It is a three-layer soft composite material, with the outer two layers made of DuPont NOMEX® from the United States Paper, with an inner layer of polyimide film.
Specifications | Composite form | Insulation level | thickness | Standard width |
Soflex®NHN | NOMEX-Polyimide-NOMEX | H~C | 0.12-0.60mm | 914mm |
Soflex®NH | NOMEX-Polyimide film | H~C | 0.07-0.41mm | 914mm |

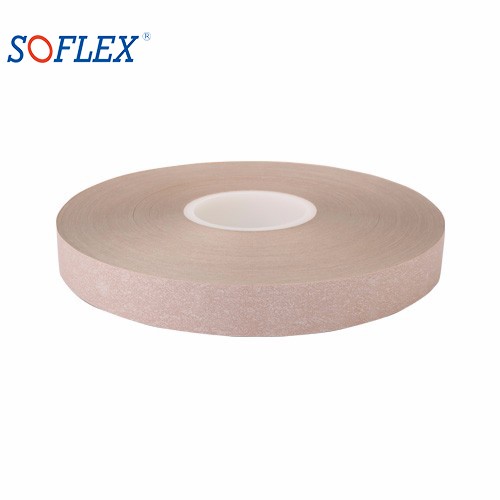

Soflex®NHN The inner diameter of the core is 3 inches, and it can be supplied in whole rolls or cut into reels or sheets. The length can be determined according to customer requirements.
Soflex®NHN Soft composite paper is widely used in electrical insulation systems due to its excellent properties. Mainly used for inter slot insulation, inter turn insulation, and liner insulation of H-C grade motors.
Storage suggestions
1. Store in a dry and clean room at room temperature.
2. Do not approach fire sources, heating, or direct sunlight.
3. The storage period is generally 12 months. If it exceeds the storage period and passes the technical standard inspection, it can still be used.
