HOKUETSU TOYO


Product Introduction Hokuetsu Toyo Vulcanized Fiberboard is made from natural materials, using cotton pulp and refined wood pulp as the base material for the base paper. After immersing the base paper in a zinc chloride solution and laminating the base paper to any desired thickness, the residual zinc chloride solution…


Product Information

  • · Base Material : Cotton pulp & refined wood pulp
  • · Thickness Range : 0.1mm - 50.0mm
  • · Core Process : Zinc chloride vulcanization

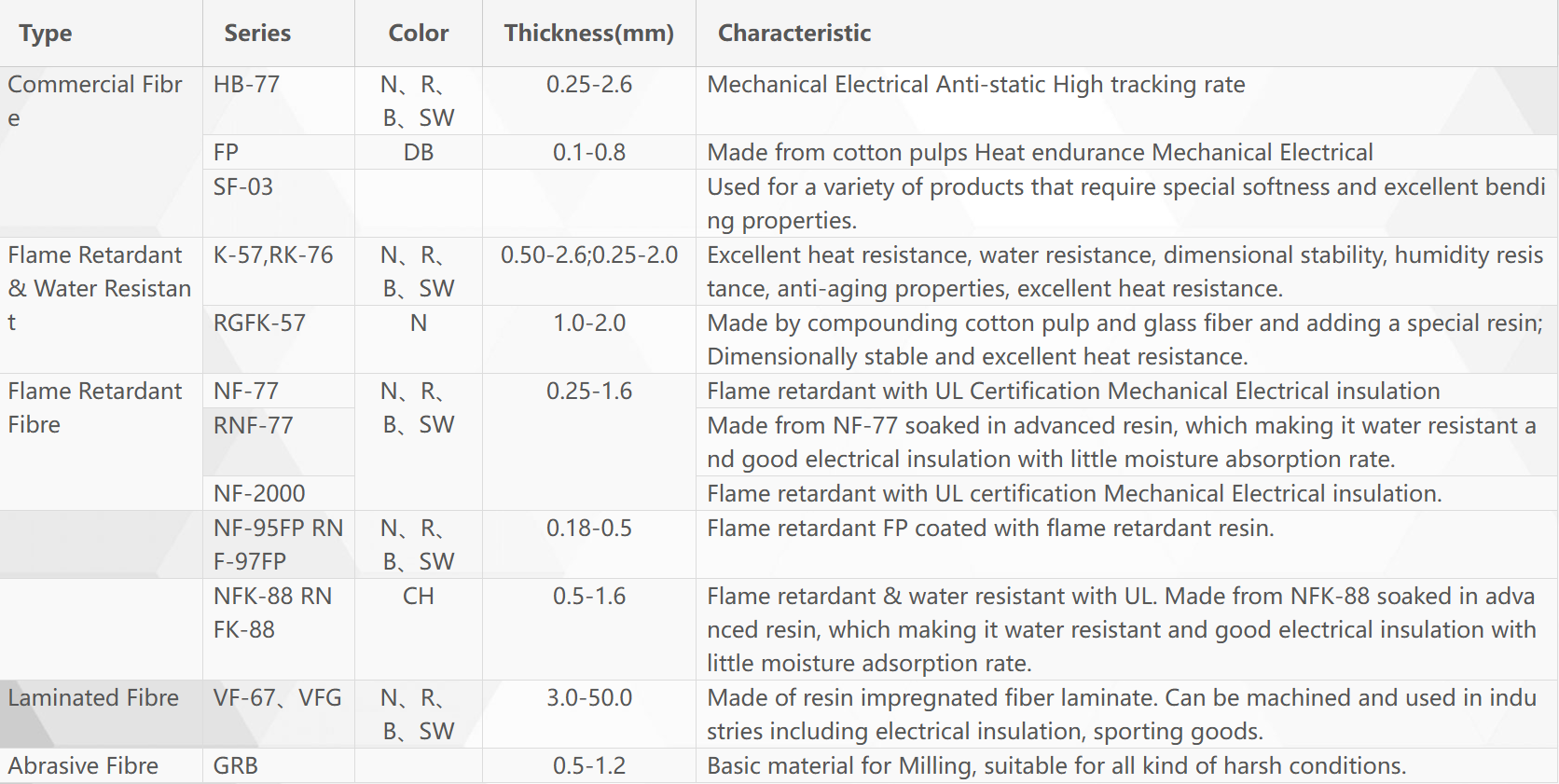

  • Product specifications


    Type

    Series

    Color

    Thickness(mm)

    Characteristic

    Commercial Fibre

    HB-77

    N、R、B、SW

    0.25-2.6

    Mechanical Electrical Anti-static High tracking rate

    FP

    DB

    0.1-0.8

    Made from cotton pulps Heat endurance Mechanical Electrical

    SF-03



    Used for a variety of products that require special softness and excellent bending properties.

    Waterproof & heat resistan fiber

    K-57,RK-76

    N、R、B、SW

    0.50-2.6;0.25-2.0

    Excellent heat resistance, water resistance, dimensional stability, humidity resistance, anti-aging properties, excellent heat resistance.

    RGFK-57

    N

    1.0-2.0

    Made by compounding cotton pulp and glass fiber and adding a special resin; Dimensionally stable and excellent heat resistance.

    Flame Retardant Fibre

    NF-77

    N、R、B、SW

    0.25-1.6

    Flame retardant with UL Certification Mechanical Electrical insulation

    RNF-77

    Made from NF-77 soaked in advanced resin, which making it water resistant and good electrical insulation with little moisture absorption rate.

    NF-2000

    Halogen-free products

    NF-95FP RNF-97FP

    N、R、B、SW

    0.18-0.5

    Flame retardant FP coated with flame retardant resin.

    NFK-88 RNFK-88

    CH

    0.5-1.0

    Flame retardant & water resistant with UL. Made from NFK-88 with advanced resin of flame retardant, which making it water resistant.

    Laminated Fibre

    VF-67、VFG

    N、R、B、SW

    3.0-50.0

    Made of resin impregnated fiber laminate. Can be machined and used in industries including electrical insulation, sporting goods.

    Abrasive Fibre

    GRB


    0.5-1.2

    Basic material for Milling, suitable for all kind of harsh conditions.








    Other information

    Hokuetsu Toyo Vulcanized Fiberboard is made from natural materials, using cotton pulp and refined wood pulp as the base material for the base paper. After immersing the base paper in a zinc chloride solution and laminating the base paper to any desired thickness, the residual zinc chloride solution is fully removed by washing and the fiberboard is vulcanized by a drying process.
